200 MHz Digital Storage Oscilloscope

200 MHz Digital Storage Oscilloscope

Description
200 MHz digital storage oscilloscope stores and analyses the signal digitally rather than using analogue techniques. It is now the most common type of oscilloscope in use because of the advanced trigger, storage, display and measurement features. This digital oscilloscope is widely used in science, pharmacy, engineering and telecommunication industries.

Features
1. This digital oscilloscope has more than 20 automatic measurements.
2. 200 MHz digital storage oscilloscope is simple to operate. All the operation processes are finished in the faceplate so that the waveform responses in a quick manner.

Advantages
1. 200 MHz digital storage oscilloscope has very high bandwidth and the maximum is up to 200 MHz.
2. It can build waveforms after the signal is digitized thus the machine has the advantages of memorizing and storing the observed signals.
3. Digital oscilloscope has more trigger modes such as pre-trigger, logic trigger and pulse width trigger.
4. The highest sampling rate of digital storage oscilloscope is up to 1GS/s thus it’s not prone to produce signal aliasing.
5. 200 MHz digital storage oscilloscope has powerful waveform processing ability and is able to measure frequency, rise time and pulse width automatically.
6. It can be connected to the computer as well as print, archive and analyze documents.

Parameters

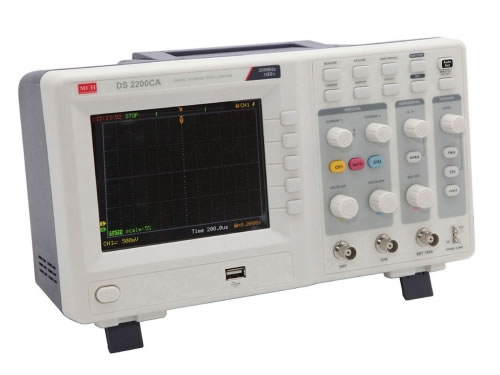

Model DS-2200CA
Display 5.7 inches (STN), Resolution:320 × 240 With “A”: Mono With “CA”: Color
Channels 2 + Ext. trigger
Bandwidth 200MHz
Rise Time 1.8ns
Real Time Sampling Rate 1GS/s
Equivalent Sampling Rate 50GS/s
Input Impedance 1MΩ ± 2%, 15pF ± 2%
Input Coupling DC, AC, GND
Memory Depth 4kpts
Vertical Sensitivity 2mV/div - 5V/div
Vertical Accuracy ±4% (2mV/div - 5mV/div) ±3% (10mV/div - 5V/div)
Vertical Resolution 8 bits
Acquisition Modes Auto, Normal, Single
Trigger Modes Edge, Video, Pulse, Delay
Trigger Sources CH1, CH2, EXT, EXT/5, EXT (50Ω)
Trigger Sensitivity 1div (DC-10MHz), 1.5div (10MHz-full bandwidth)
Time Base 1ns/div to 50s/div
Horizontal Accuracy ±0.01%
BW Limited 20MHz
Max. Input Voltage 400V (DC+AC peak)
Auto Measurements VPP, Vamp, VRMS, VMAX, VMIN, VTOP, VBASE, VAVG, Freq, Period, Rise time, Fall time, +Width, -Width, Overshoot, +Duty,-Duty
Math +, -, ×, ÷, FFT
Storage 10 sets of waveform and 10 sets of setup
FFT Windows: Hanning, Hamming, Blackman-Harris, Rectangular Sample points: 1024 pts
X-Y Bandwidth: 25MHz/40MHz/60MHz/100MHz/150MHz/200MHz Phase difference: ±3°
PC Interface USB
Power Supply 100-240V AC, 40VA Max.
Accessories Power cord, Probe × 2
Dimension 303(W) × 145(H) × 150(D) mm
Weight 4.5kg

Related Product

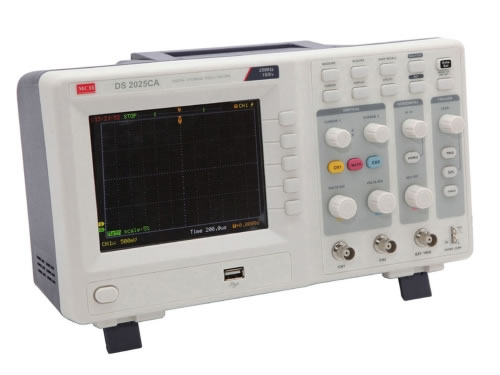

  • 25 MHz Digital Storage Oscilloscope
