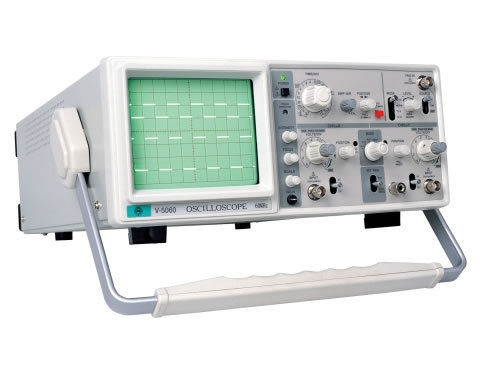

60 MHz Analog Oscilloscope
Description
Oscilloscopes are used to observe the change of an electrical signal over time. The constantly varying signal voltage can be graphed on the screen, which is commonly referred to as a waveform.
Application
1. 60 MHz analog oscilloscope is widely used in science, pharmacy, engineering and telecommunication industries.
2. It can be used to observe waveforms of different signal amplitudes over time. It can also be used to test different powers such as voltage, electric current, frequency, phase difference and amplitude modulation.
Parameters of 60 MHz Analog Oscilloscope
| CRT | ||
| Screen | 6" screen with internal graticule: 8×10 divisions (1 division=1cm) | |
| Accelerating Voltage | +12kv | |
| Phosphor | P31 standard | |
| Focusing | Adjustable | |
| Trace Rotation | Adjustable | |
| Intensity Control | Provided | |
| Vertical Deflection | ||
| Bandwidth | DC Coupling | DC to 60MHz (Normal) DC to 10MHz (Magnified) |
| AD Coupling | 10Hz to 60MHz (Normal) 10Hz to 10MHz (Magnified) | |
| Deflection Factor | 5mV/div to 5V/div in 10 steps of 1-2-5 sequence (X5 Magnified: 1mV/div to 1V/div in 10 steps) | |
| Display Mode | CH1, CH2, ADD, ALT, CHOP | |
| Accuracy | Normal: ±3%, Magnified: ±5% | |
| Input Impedance | 1MΩ, 25pF | |
| Max. Input Voltage | 250V (DC+AC peak) | |
| CH1 Output | 20mV/div (in 50Ω, 20Hz to 10MHz) | |
| Rise Time | ≤5.9ns | |
| Polarity Inversion | CH2 Only | |
| Horizontal Deflection | ||
| Time Base | 0.2μs/div to 0.2s/div in 9 steps of 1-2-5 sequence. | |
| Sweep Magnification | X10 | |
| CH1 ALT Magnification | X10 | |
| Accuracy | Normal: ±3%, Magnified: ±5% | |
| X-Y Mode | ||
| X-Axis | CH1 (Bandwidth: DC-500kHz) | |
| Y-Axis | CH2 | |
| X-Y Phase Difference | 3° or less (DC-50kHz) | |
| Trigger System | ||
| Mode | NORM, AUTO, TV-V, TV-H | |
| Trigger Source | CH1,CH2,VERT, LINE, EXT | |
| Coupling | AC | |
| Slope | + or - | |
| Sensitivity & Frequency | 0.5 div (0.5Vp-p EXT), 10Hz-60MHz 1.0 div or 1Vp-p, TV | |
| Calibrator | ||
| Frequency | 1kHz ±20% | |
| Voltage | 0.5V ±10% | |
| Power Supply | ||
| Voltage Range | 220V/110V ±10% | |
| Fuse | 0.5A/1A | |
| Frequency | 50Hz-60Hz | |
| Physical | ||
| Dimensions | 310(W) ×130(H) × 370(D) mm | |
| Weight | 9kg | |
Notes
1. 60 MHz analog oscilloscope should be equipped with suitable line voltage.
2. To avoid electrical shock, the protective grounding conductor of power cord should be connected to ground.
Maintenance
1. To maintain good ventilation of 60 MHz analog oscilloscope, regular cleaning should be carried out.
2. Do not spray cleaner directly onto the instrument when cleaning it. Please use a soft cloth with mild detergent and water instead.

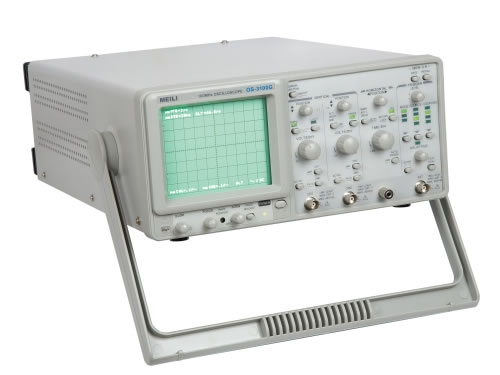

- 100 MHz Analog OscilloscopeAnalog oscilloscope, which adopts cathoderay tubes to display a waveform, is the first oscilloscope that is used by engineers. 100 MHz analog oscilloscope is used to observe the change of an electrical signal over time. The constantly varying signal voltages can be graphed on the screen, which is commonly referred to as a waveform. It is a kind of...
