Home » Products » Signal Generator
  • Low Frequency Signal Generator

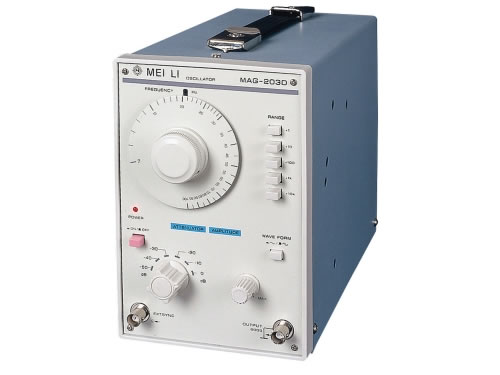

  • Low Frequency Signal GeneratorLow frequency signal generator is an electronic device that generates repeating or non-repeating electronic signals (in either the analog or digital domains). It is generally used in designing, testing, troubleshooting and repairing electronic devices. It is also known as function generator and test oscillator.1. Low frequency signal generator is suitable for circuit experiment...
  • RF Signal Generator

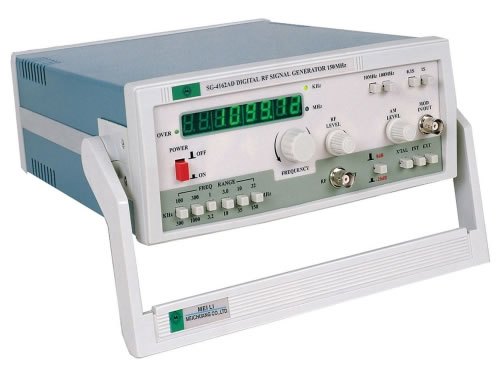

  • RF Signal GeneratorRF signal generator is an eleatronic device that generates different types of electrical waveforms over a wide range of frequencies. It generally adopts LC tuned oscillator. The frequency can be output according to the circular graduation of tuning condenser.1. RF signal generator is widely used in developing, testing and repairing electronic equipment...

Signal Generator

Description
Signal generator is an electronic device that generates repeating or non-repeating electronic signals (in either the analog or digital domains). It is generally used in designing, testing, troubleshooting and repairing electronic devices. It is also known as function generator and test oscillator.

Application
1. Signal generator is suitable for circuit experiment and test equipment. For example, in communication, broadcasting and television system it requires radio frequency emission. Here radio frequency wave means carrier. And this process involves test oscillator if you want to emit out the audio (low frequency), video signal or pulse signal.
2. Signal generator is widely used in industrial, agricultural and biological medicine fields. Test oscillator is involved in making high frequency induction heating, melting, quenching, ultrasonic diagnosis and NMR-imaging.

Advantages
1. Parameters of output signal can be adjusted within a certain scope. Thus signal generator has good stability.
2. It also has the advantages of small size, low cost, stable performance, high resolution, fast frequency conversion, easy operation, complete functions as well as intuitive and accurate readings.

Features
1. In addition to voltage output, it also has power output.
2. Signal generator is equipped with input interface of external sweep frequency control. Besides, signal measurement of it is very convenient.

Usage
The first step is to choose the output waveform of signal generator. And then set the frequency shift and output attenuation. The last is to adjust the amplitude knob to get needed output signal.

Notes
1. Signal generator should be placed in dry and ventilated places when it is not in use. The machine should avoid moisture and oil pollution.
2. When making a test on the machine, there should be no irrelevant items piled up on the equipment panel or the surrounding.
3. Please check the power supply and voltage for 220V±10% and 50Hz before starting it.
4. When it needs to change the insurance pipe and fittings, please choose the model same with this machine.

Maintenance
1. To maintain good ventilation, regular cleaning should be carries out.
2. Please do not spray cleaner directly onto the instrument. Use a soft cloth with mild detergent and water.
3. Before using the instrument, please check whether there is any damage in it and whether there is signal after it is charged with electricity. If the instrument is not in use for a long time, please also check whether there is any corrosion or aging phenomenon in binding post of output unit.
4. After operation, please clean the connections in binding post and also turn off the power. Close the chassis cover and put it in dry, clean, ventilated places without any corrosive gas.

Payment, Packaging and Delivery
1. T/T or L/C is accepted terms of payment.
2. Signal generators are packed in standard carton boxes.
3. Type of shipping is by sea, by air or land transportation.

Service
We provide one-year warranty period as well as technical and material support for signal generator.
