Single Output Linear Power Supply (0-30V/0-10A)
Description
30V/10A single output linear power supply is used for supplying constant voltage or constant current to an electrical load. The voltage and current can be set at any value within its full scale. This DC power supply can be widely used in schools, researching laboratories and electronic factories.
Features
30V/10A single output linear power supply features high stability, overall output protection, voltage and current continuously adjustable.
Parameters
| Model MCH-3010A | |
| Constant Voltage | |
| Output Voltage | 0 - 30V |
| Line Regulation | 1 × 10-4+3mV |
| Load Regulation | 1 × 10-4+3mV |
| Ripple & Noise | < 1 mV (rms) |
| Recovery Time | < 100μs |
| Temp. Coefficient | < 300ppm/°C |
| Constant Current | |
| Output Current | 0 - 10A |
| Line Regulation | 0.2%+3mA |
| Load Regulation | 0.2%+3mA |
| Ripple Current | < 3mA (rms) |
| Others | |
| Display Error | <0.5% + 1 digit |
| Weight (kg) | 4.8kg |
| Dimension | 130(W) × 165(H) × 330(D) mm |
Notes
1. 30V/10A single output linear power supply should adopt suitable line voltage.
2. The grounding conductor of power cord should be connected to ground in case of electrical shock.
Maintenance
1. The most important is dust prevention and heat dissipation. Besides, please avoid overload operation.
2. 30V/10A single output linear power supply should always be in a vertical state without any wind, snow, ice or hail.
3. Please keep regular cleaning in order to maintain good ventilation.
4. Do not spray cleaner directly onto the instrument. Please use a soft cloth with mild detergent and water.
5. Keep away from gas, steam, chemical deposition, dust, greasy dirt and other explosive or corrosive medium when you install DC stabilized power supply. Then the insulating property of the machine will be well-protected. Try to avoid the action of vibration or jounce.

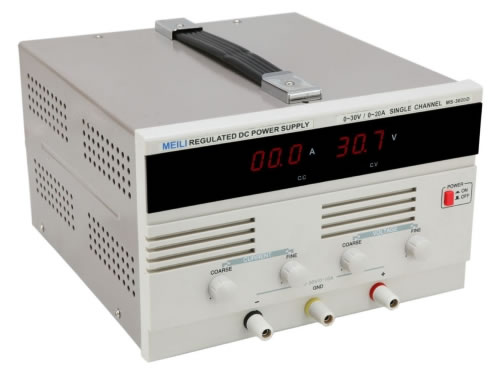

- Single Output Linear Power Supply (0-30V/0-20A)The current of this single output linear power supply 20A. It is used for supplying constant voltage or constant current to an electrical load. The voltage and current can be set at any value within its full scale. This DC power supply can be widely used in schools, researching laboratories and electronic factories.1. The voltage and current of 30V/20A single output linear...
