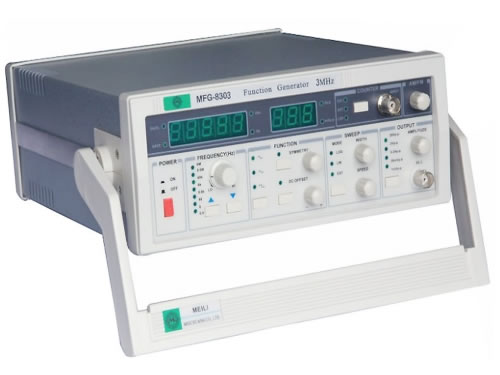

2 MHz Analog Function Generator
Description
2 MHz analog function generator is a device that generates different types of electrical waveforms over a wide range of frequencies. It can be widely used in development, test and repairing electronic equipment.
Advantages
1. 2 MHz analog function generator adopts precise current source circuit which makes the output signal has high accuracy over the whole frequency band.
2. Function signal generator is composed of operational amplifier and discrete component. It features simple structure, low cost and high reliability.
3. The computer case of 2 MHz analog function generator is beautifully designed and is control by full board. It is more comfortable and convenient to operate.
Parameters
| Model | MFG-3002, MFG-8202 |
| Frequency Range | 0.1Hz - 2MHz |
| Display | 6 digit LED display |
| Output Waveforms | Sine, Triangle, Square, ± Pulse, ± Ramp |
| Output Impedance | 50Ω ± 10% |
| Output Amplitude | ≥20Vp-p (open circuit), ≥10Vp-p (with 50Ω load) |
| DC Offset | 0 to ± 10V continuously adjustable |
| Symmetry Range | 90:10 - 10:90 |
| Rising Edge of Square | <100ns |
| Sine Characteristic | |
| Distortion | <1% (at 10Hz-100KHz) |
| Frequency Response | 0.1Hz - 100KHz: ± 0.5dB 100KHz - 2MHz: ± 1.0dB |
| TTL Output | |
| Level | Low level: ≤0.4V High level: ≥3.5V |
| Rising Time | ≤ 100ns |
| CMOS Output | |
| Level | Low level: ≤0.5V, High level: 5V - 14V continuously variable. |
| Rising Time | ≤ 100ns |
| VCF Input | |
| Input Voltage | -5V to 0V ± 10% |
| Max. Volt-controlled | 1000:1 |
| Input Signal | DC-1kHz |
| Frequency Counter | |
| Measuring Range | 1 Hz-30MHz |
| Input Impedance | ≥1 MΩ/ 20pF |
| Sensitivity | 100mVrms |
| Max. Input | 150V (AC+DC) |
| Input Attenuation | 20dB |
| Accuracy | < 0.003% ± 1 digit |
| General | |
| Power Supply | AC 220V ± 10%, 50-60Hz (110V ± 10% Optional) |
| Operation Ambient | 0℃ to 40℃/≤90%RH |
| Dimension | 310(W) × 100(H) × 260(D) mm |
| Weight | 3.7kg |
Notes
1. 2 MHz analog function generator should be equipped with suitable line voltage.
2. To avoid electrical shock, the protective grounding conductor of power cord should be connected to ground.
Maintenance
1. To maintain good ventilation, regular cleaning should be carried out.
2. Do not spray cleaner directly onto the instrument when cleaning it. Please use a soft cloth with mild detergent and water instead.
