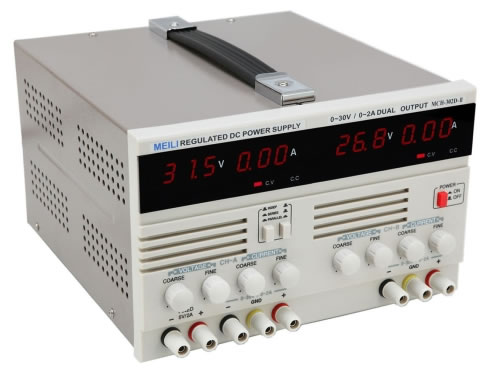

Dual Output Linear Power Supply (0-30V/0-2A)

Dual Output Linear Power Supply (0-30V/0-2A)

Description
30V/2A dual output linear power supply is an electronic device used to supply constant voltage or constant current to an electrical load. The voltage and current can be set at any value within its full scale. This DC stabilized power supply can be widely used in schools, researching laboratories and electronic factories.

Features
30V/2A dual output linear power supply features high stability, overall output protection, voltage and current continuously adjustable.

Advantages
1. DC stabilized power supply has improved functions of current limit, short circuit and thermal perfection.
2. 30V/2A dual output linear power supply features simple circuit, convenient adjustment, good performance and low cost.
3. The voltage and current of DC stabilized power supply are constant. Besides, the voltage and current are continuously adjustable according to different requirements.

Parameters

Model MCH-302DII
Constant Voltage
Output Voltage Dual Channel 0 - 30V
Line Regulation 1 × 10-4+3mV
Load Regulation 1 × 10-4+3mV
Ripple & Noise < 1 mV(rms)
Recovery Time < 100μs
Temp. Coefficient < 300ppm/°C
Constant Current
Output Current Dual Channel 0 - 2A
Line Regulation 0.2%+3mA
Load Regulation 0.2%+3mA
Ripple Current < 3mA (rms)
Fixed Output
Output Voltage fixed 5V
Output Current 2A
Line Regulation <5mV
Load Regulation < 15mV
Ripple & Noise < 2mV(rms)
Others
Operation Mode Independent, Serial and Parallel
Display Error < 0.5% + 1 digit
Weight (kg) 7.8kg
Dimension 260 (W) × 165 (H) × 300 (D) mm

Notes
1. 30V/2A dual output linear power supply should adopt suitable line voltage.
2. The grounding conductor of power cord should be connected to ground in case of electrical shock.

Maintenance
1. Please keep regular cleaning in order to maintain good ventilation.
2. Do not spray cleaner directly onto the instrument. Please use a soft cloth with mild detergent and water.

Founded in 1995, MCH Instruments Co., Ltd. is a high-tech enterprise specialized in analog oscilloscope, digital storage oscilloscope, dual output linear power supply, function generator, low frequency signal generator, soldering station, spectrum analyzer and frequency counter. Our products are widely used in industrial production, experimental teaching and scientific research and development fields.

Related Product

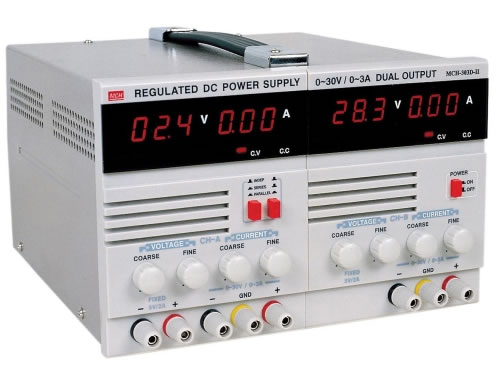

  • Dual Output Linear Power Supply (0-30V/0-3A)
