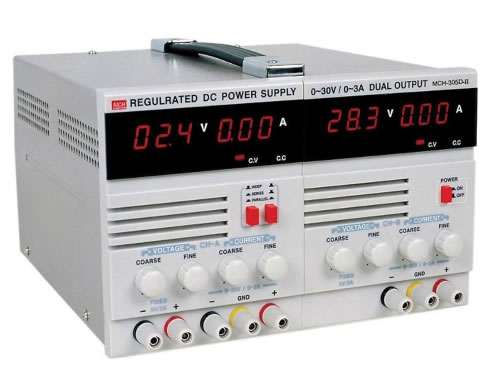

Dual Output Linear Power Supply (0-30V/0-5A)
Description
30V/5A dual output linear power supply is used for supplying constant voltage or constant current to an electrical load. The voltage and current can be set at any value within its full scale. This linear regulated power supply is widely used in schools, researching laboratories and electronic factories.
Features
30V/5A dual output linear power supply has the characteristics of high stability, overall output protection, dual output with parallel and series mode, continuously adjustable voltage and current as well as CC/CV mode auto switching.
Advantages
1. 30V/5A dual output linear power supply features small volume, low noise, light weight, energy saving and high efficiency.
2. The output voltage is lower than input voltage. Besides, it has quick reaction speed and small output ripple.
3. It has improved functions of current limit, short circuit and thermal perfection.
4. 30V/5A dual output linear power supply is characteristic of simple circuit, convenient adjustment, good performance and low cost.
5. The voltage and current of linear regulated power supply are constant. Besides, the voltage and current are continuously adjustable according to different requirements.
Parameters
| Model | LANTYCA-305DII |
| Constant Voltage | |
| Output Voltage | Dual Channel 0 - 30V |
| Line Regulation | 1 × 10-4+3mV |
| Load Regulation | 1 × 10-4+3mV |
| Ripple & Noise | < 1 mV (rms) |
| Recovery Time | < 100μs |
| Temp. Coefficient | < 300ppm/°C |
| Constant Current | |
| Output Current | Dual Channel 0 - 5A |
| Line Regulation | 0.2%+3mA |
| Load Regulation | 0.2%+3mA |
| Ripple Current | < 3Ma (rms) |
| Fixed Output | |
| Output Voltage | fixed 5V |
| Output Current) | 2A |
| Line Regulation | <5mV |
| Load Regulation | <15mV |
| Ripple & Noise | <2Mv (rms) |
| Others | |
| Operation Mode | Independent, Serial and Parallel |
| Display Error | <0.5% + 1 digit |
| Weight (kg) | 7.8 kg |
| Dimension | 260 (W) × 165 (H) × 300 (D) mm |
Notes
1. 30V/5A dual output linear power supply should adopt suitable line voltage.
2. In order to avoid electrical shock, the grounding conductor of power cord should be connected to ground.
