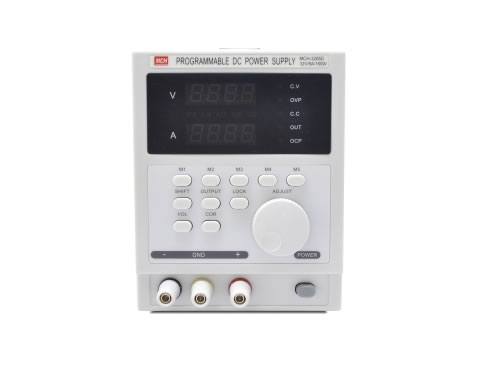

Single Output Programmable DC Power Supply (0-32V/0-5A)

Single Output Programmable DC Power Supply (0-32V/0-5A)

Description
32V/5A single output programmable DC power supply is a commonly used electronic device used for supplying constant voltage or constant current to an electrical load. The voltage and current can be set at any value within its full scale. It is widely used in schools, researching laboratories and electronic factories.

Advantages
1. 32V/5A single output programmable DC power supply is typical of high stability, comprehensive output protection, full scale long time operation, continuously adjustable voltage and current as well as CC/CV mode auto switching.
2. It supports high accuracy and dynamic programming as well as RS232 communication.
3. 32V/5A single output programmable DC power supply has the advantages of light weight, low noise, high stability, high efficiency, small size and high accuracy.

Parameters

Model MCH-3205D
Output Voltage 0-32.00V (Step 0.01V)
Output Current 0-5.000A
Line Regulation CV≤0.01%+3mV(mA)
Load Regulation CV≤0.01%+3Mv (I≤3A)  CC≤0.02%+3mV (I≤3A)
CV≤0.02%+5mV (I>3A)   CC≤0.02%+5mV (I>3A)
Noise & Ripple CV≤1.0mVrms (I≤3A)   CC≤3mArms (I≤3A)
CV≤2.0mVrms (I>3A)    CC≤6mArms (I>3A)
Protection Type OCP
Display Resolution Voltage: ± (0.5%+2 digits) Current: ± (1%+2 digits)
Operation Ambient Temperature: 0-40℃      relative temperature: ≤80%
Power Consumption 192VA
Line Voltage AC220V±10% 50Hz/60Hz, AC110V±10% 50Hz/60Hz
Size 130 (W) × 165 (H) × 330 (D) mm
Weight 5.5 kg

Notes
1. 32V/5A single output programmable DC power supply should adopt suitable line voltage.
2. The grounding conductor of power cord should be connected to ground in case of electrical shock.
3. The instrument should always be in a vertical state without suffering any wind, snow, ice or hail.
4. When short circuit occurs, please turn off the power and check the equipment immediately. After the short-circuit fault is solved, you can turn on the instrument again.
5. 32V/5A single output programmable DC power supply should be put in good ventilated places. If not, please install a ventilator in the room.
6. When short circuit in loading equipment occurs, please turn off the power to have a check and do not turn it on until short trouble is solved.

Maintenance
1. The most important things are dust prevention and heat dissipation. Besides, do not operate the instrument in overload condition.
2. The installation site of DC regulated power supply should have no gas, steam, chemical deposition, dust, greasy dirt and other explosive or corrosive medium that will affect the insulating property of the machine. Besides, there should be no series vibration or turbulence.
3. Single output programmable DC power supply should always be in a vertical state without suffering any wind, snow, ice or hail.
