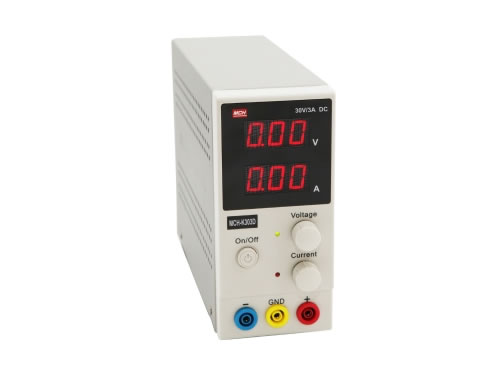

Single Output Switching Mode Power Supply

Description
Single output switching mode power supply is an electronic power supply that incorporates a switching regulator to convert electrical power efficiently. Like other power supplies, an SMPS transfers power from a source (like mains power) to a load (such as a personal computer). Single output means there is one set of voltage output.

Application
Single output switching mode power supply is widely used in factory production lines, maintenance and debugging places as well as laboratories. It is also a necessary instrument in communication industry.

Classification
Single output switching mode power supply includes 0-30V/0-2A, 0-30V/0-3A, 0-30V/0-5A and 0-150V/0-4A types.

Advantages
1. It has many protection functions such as over voltage protection, under-voltage protection, over current protection, over temperature protection, overload protection and reverse polarity protection functions. For example, if the output voltage exceeds the normal value, the over voltage function will take reaction and cut off the output process. After the instrument is restarted, it recovers to the normal condition.
2. Single output switching mode power supply features small volume, light weight, energy saving and high efficiency.
3. It has two operation modes include series mode and parallel mode.

Features
Single output switching mode power supply is characteristic of high stability, overall output protection, full scale long time operation, continuously adjustable voltage and current as well as CC/CV mode auto switching.

Notes
1. When short circuit occurs, please turn off the power and check the equipment immediately. After the short-circuit fault is solved, you can turn on the instrument again.
2. Single output switching mode power supply should be put in good ventilated places. If not, please install a ventilator in the working place.
3. This DC stabilized power supply should adopt suitable line voltage.
4. To avoid electrical shock, the grounding conductor of power cord should be connected to ground.

Maintenance
1. The most important things are dust prevention and heat dissipation. Besides, do not operate the machine in overload condition.
2. Keep away from gas, steam, chemical deposition, dust, greasy dirt and other explosive or corrosive medium when you install DC stabilized power supply. Then the insulating property of the machine will be well-protected. Try to avoid the action of vibration or turbulence.
3. Single output switching mode power supply should always be in a vertical state without any wind, snow, ice or hail.
4. Please keep regular cleaning in order to maintain good ventilation. Besides, do not spray cleaner directly onto the instrument. Please use a soft cloth with mild detergent and water.

Payment, Packaging and Delivery
1. T/T or L/C is accepted terms of payment.
2. The products are packed in standard carton boxes.
3. Type of shipping is by sea, by air or land transportation.

Service
1 year warranty and technical support are available for single output switching mode power supply.
